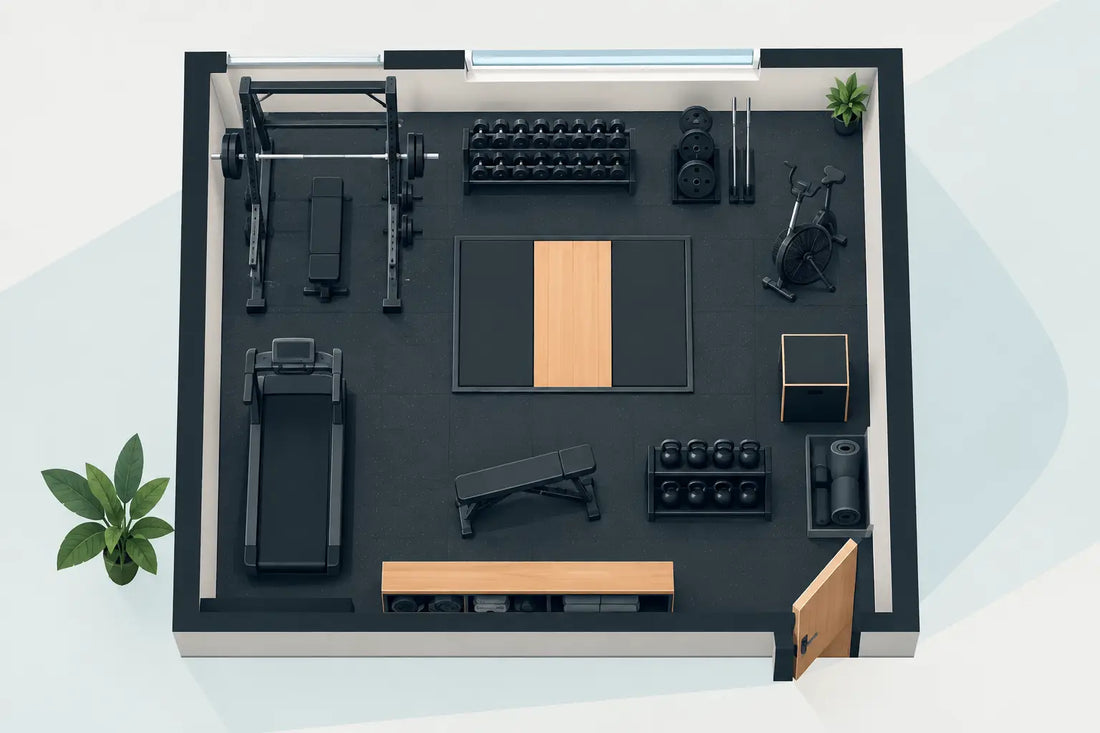

Home Gym Floor Plan Ideas for Serious Training

A loaded bar should not force you to sidestep a treadmill, squeeze past storage bins, or wait for someone to finish using the only open floor space. The best home gym floor plan ideas start with one standard: every square foot should support a workout you can begin on your schedule, finish without compromise, and repeat for years.

A serious home gym is not defined by its size. It is defined by whether the layout lets you train hard, move safely, and keep your equipment ready. A well-planned 10-by-12-foot room can outperform a larger space filled with isolated machines. The difference is deliberate zoning, clear movement paths, and equipment chosen to earn its footprint.

Start With Your Training Order, Not Your Equipment

Most layout mistakes happen before the first machine arrives. People buy what looks impressive, then try to force it into a room. Plan in the opposite order: map the way you actually train, then select equipment that supports it.

For many households, the training sequence is simple. You walk in, warm up, lift, finish with conditioning, then recover. Your floor plan should follow that order without creating traffic jams. Keep the entrance clear, place your primary strength station at the center of the room, and position cardio where it does not block a rack, cable arm, or lifting platform.

An all-in-one Smith machine and cable crossover station can replace several separate pieces of equipment. That matters in a home setting. Instead of dedicating one wall to a power rack, another to a functional trainer, and another to a leg station, you create one high-capability strength zone with room left for movement.

Before measuring equipment, write down the sessions you refuse to skip: heavy barbell work, cable training, incline walking, interval runs, mobility work, cold immersion, or heat recovery. Your non-negotiables deserve the best positions. Accessories can fit around them.

The Clearances That Make a Home Gym Work

Equipment dimensions tell only part of the story. You also need usable space around the equipment. A machine that technically fits but cannot be loaded, adjusted, or used safely does not fit.

Give your primary strength station enough space for plate changes, bench positioning, and a clear exit route. As a working rule, leave roughly 30 to 36 inches on the sides where you will move and load plates. If a barbell is used outside the rack or Smith rails, account for the full bar length plus room to walk around the ends. Verify the exact footprint and operating clearance in the manufacturer specifications before ordering.

Ceiling height deserves the same attention. Pull-ups, overhead pressing, cable travel, and even standing on a treadmill can become problems in a low-ceiling basement. Measure from the finished floor to the lowest obstruction, including ducts, lights, garage-door tracks, and fans. An eight-foot ceiling may work for some compact setups, but taller trainees and full-height functional trainers often need more room.

Cardio equipment needs a protected lane. A treadmill should face an open area rather than a wall directly in front of the belt. Leave sufficient space behind it for safe dismounting, and do not run extension cords across the floor. Continuous-duty motor performance only matters when the machine has the power, ventilation, and placement to run as intended.

Finally, protect the floor under your heaviest work. Dense rubber flooring reduces noise, protects concrete and finished floors, and gives benches and machines a stable base. For upper-story rooms, factor in structure, vibration, and point loads. If you are installing heavy commercial-grade equipment, consult a qualified contractor or structural professional when there is any doubt.

6 Home Gym Floor Plan Ideas That Earn Their Space

1. The garage strength-and-cardio layout

A two-car garage gives you a strong starting point because concrete floors can handle serious equipment and the open bay creates useful lifting clearance. Set the all-in-one strength station against the longest uninterrupted wall. Place a treadmill along the adjacent wall, facing into the room, and reserve the center for a bench, dumbbells, warm-ups, and floor work.

Keep vehicle storage or household gear on the farthest side of the gym zone, not between the entrance and your equipment. A training space that requires moving boxes before every session will eventually become a storage room again.

2. The spare-room performance layout

In a 10-by-12-foot or 12-by-12-foot room, one all-in-one machine should carry most of the strength workload. Center it on the main wall, place an adjustable bench where it can move freely between the Smith rails and cable columns, and use vertical storage for plates, dumbbells, and attachments.

Skip oversized standalone equipment here. A compact treadmill can work if it has a dedicated wall and adequate rear clearance, but it may be smarter to make the room a pure strength space and put cardio elsewhere. A smaller room performs better when it has one job.

3. The basement training corridor

Basements often offer the square footage people want, but their constraints are real: lower ceilings, support columns, mechanical rooms, and tighter access paths. Build the plan around the ceiling first. Put the tallest equipment in the highest section of the room, then use lower-profile cardio or storage along soffits and restricted walls.

If a column lands in the middle of the space, do not fight it. Turn that area into a boundary between strength and conditioning. Use the open side for your main station and keep the other side clear for treadmill work, mobility, or storage. Good planning turns an obstacle into a natural zone divider.

4. The dedicated lifting room

If strength is your priority, let the room say so. Put a commercial-grade Smith and cable station on the focal wall, create an open bench lane in front of it, and use the remaining walls for plate trees, dumbbell racks, and attachment storage. This is the right layout for the lifter who wants fast transitions between squats, presses, rows, pulldowns, and accessory work.

Do not crowd the center with a treadmill just because you think every gym needs one. Your equipment mix should reflect your routine, not a generic showroom. A lifting room with clear working space will get used harder than a cluttered room built for every possible exercise.

5. The strength, cardio, and recovery suite

A larger basement, garage, or detached building can support a complete private performance setup. Divide it into three clear zones: strength at the center, cardio near airflow and power, and recovery in a separate area that can handle moisture and cleaning.

Cold plunge systems need practical access to water, drainage, ventilation, and a properly protected electrical supply. Wood-fired hot tubs belong outdoors or in a purpose-built area with safe clearance, drainage, and ventilation. Keep wet recovery away from lifting surfaces and electrical equipment. The best recovery zone feels close enough to use after training, but separate enough that humidity never compromises your gym.

6. The backyard training outpost

A climate-controlled outbuilding creates real separation between home life and training time. It is especially effective for parents, remote workers, and anyone whose indoor space is already claimed. Plan a direct path from the house, durable flooring, dedicated electrical capacity, and lighting that supports early mornings or late sessions.

This layout can pair a full strength station with cardio indoors and thermal recovery immediately outside. It requires a larger upfront investment, but it gives you something a crowded commercial facility cannot: a training environment built around your exact standards.

Design for Solo Training and Fast Resets

A home gym succeeds when one person can train safely without turning setup into a project. Choose a primary strength station with stable construction, safety catches or stops, and cable positions that reduce constant equipment swapping. Capacity matters here. A frame rated to handle serious loads is not just a specification - it is the confidence to train without treating every working set like a compromise.

Store plates close enough to load efficiently, but never where they narrow your walking route. Keep frequently used attachments on wall-mounted storage or dedicated pegs. Put cleaning supplies, a towel hook, and a small trash bin near the exit. These details are not glamorous, but they keep the room disciplined.

Use lighting with intent. Bright, even overhead light helps with setup and safety, while a separate switch for softer recovery lighting can make the transition after training feel immediate. Add a fan or ventilation plan before the room is finished, not after summer workouts expose the problem.

Measure Twice Before You Commit

Tape the equipment footprint onto the floor before placing an order. Mark the machine itself, the bench travel, the treadmill deck, plate-loading access, doors, and walkways. Then move through a mock workout. Sit where the bench will sit. Reach where a cable handle will travel. Pretend to carry a 45-pound plate through the room.

That simple test exposes problems that room measurements miss. It also makes the right choice clearer: more equipment is not always more capability. The strongest plan is the one that protects your training flow and gives every major piece a reason to be there.

Build the room around the work you intend to do when motivation is low and time is tight. When the path is clear, the equipment is ready, and the standard is yours, your gym stops waiting for you.
