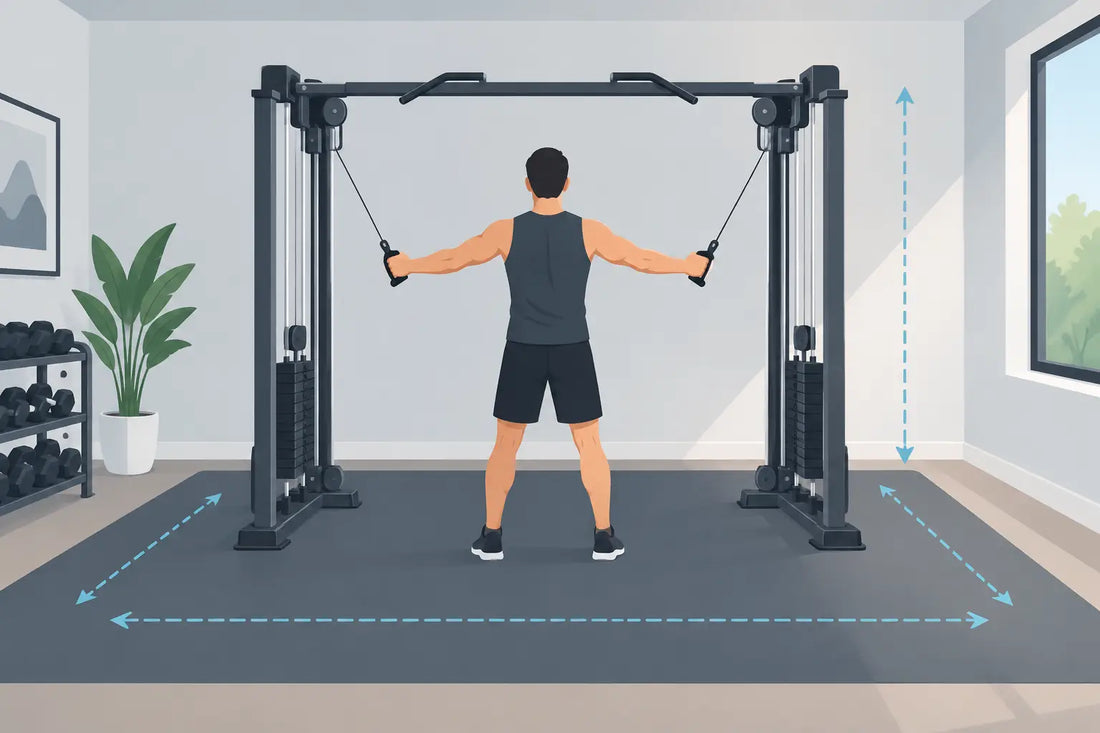

Cable Crossover Space Requirements for Home Gyms
A cable crossover can replace a long list of single-purpose machines, but only if you give it room to operate. Cable crossover space requirements are not just about whether the frame fits through the door or against the wall. They determine whether you can press, row, fly, squat, and train at full range without clipping a wall, shelf, vehicle, or family member walking through the room.
For a home gym built around consistency, the right question is not, “What is the smallest room this can fit in?” It is, “What room size lets me train hard without rearranging my life before every session?”
Start With the Machine Footprint, Then Add the Training Zone
Every cable crossover has a stated footprint: the width and depth of the steel frame where it contacts the floor. That number is essential, but it is not your total space requirement. The working area is larger because cable exercises happen in front of, between, and sometimes beside the uprights.
A compact all-in-one Smith machine with cable pulleys may occupy roughly 6 to 7 feet wide and 4 to 6 feet deep. A traditional dual-stack cable crossover with wide pulley towers can run 10 to 14 feet wide and 3 to 5 feet deep before you account for the athlete. Those are broad planning ranges, not substitutes for the exact product specification.
For most home installations, add at least 3 feet of clear space in front of the machine. Four to 5 feet is better if you plan to perform standing cable presses, split-stance rows, lunges, fly variations, or rotational work. This is the difference between owning a machine and using its full capability.
Side clearance matters, too. If your crossover has moving arms, lateral pulleys, storage pegs, or plate-loaded horns, leave enough room to load weight and adjust attachments without pinching your hands against a wall. A tight installation may technically work, but it turns every workout into a compromise.
Recommended Cable Crossover Space Requirements by Setup
The best room size depends on the style of station you choose and how much of your training it needs to carry.
Compact Cable Crossover or All-in-One Station
For a compact functional trainer or an all-in-one Smith machine with dual pulleys, plan for a room or garage bay that is at least 8 feet wide by 10 feet deep. This gives the equipment a defined home while preserving a usable training lane in front of it.
A 10-by-12-foot space is more comfortable for serious use. You can move through cable work, barbell movements, a bench setup, and floor-based training without shifting equipment every few minutes. For busy professionals and parents, that friction matters. The easier it is to start, the more often the session gets done.
Full-Width Cable Crossover
A traditional commercial-style crossover needs more lateral room. Plan on at least 12 feet of width for the frame, access to both weight stacks, and a training position between the towers. A 12-by-12-foot room can work when the crossover is the centerpiece and you keep other equipment minimal.
If you want a bench, dumbbell storage, or a treadmill in the same area, 14-by-16 feet or more gives you a far stronger layout. That extra space is not excess. It protects your movement quality and keeps the room from becoming an obstacle course.
Garage Gym Layout
A single-car garage can support a compact cable crossover or all-in-one station well, especially when the equipment sits along the back wall. Measure around parked vehicles, garage door tracks, utility panels, water heaters, and the door swing into the house.
If the garage still stores a vehicle, keep a permanent marked training zone rather than relying on a temporary setup. A machine that has to be rolled away, unfolded, or cleared of boxes will lose workouts to real life. Your gym should be ready when your schedule opens up.
Ceiling Height Is a Performance Requirement
Cable crossover height is easy to overlook until the delivery arrives. Most home cable stations require ceilings around 7.5 to 8 feet high, but the frame height alone is only part of the calculation. You also need room to install the unit, route cables correctly, and perform overhead work with control.
An 8-foot ceiling can be workable for many compact stations. It may feel restrictive for tall lifters performing overhead cable extensions, pull-ups, muscle-up progressions, or standing presses. If the machine includes a pull-up bar, measure your standing reach with arms overhead, then leave room to hang and move without contacting the ceiling.
Basements deserve extra attention. Soffits, exposed ductwork, light fixtures, sprinkler lines, and low beams can reduce usable height in the exact place your machine needs to sit. Measure the lowest obstruction, not the highest point in the room.
When ceiling height is limited, choose equipment based on the movements you will actually perform. A lower-profile cable station may be the right call if it lets you train safely every day. Forcing a tall unit into a low room is not a disciplined decision. It is an expensive way to restrict your own training.
Account for the Bench, Attachments, and Your Body Position
A cable crossover earns its floor space because it supports dozens of movement patterns. That versatility also means the working zone changes by exercise.
Cable flys and presses place you in front of the machine. Seated rows need room for the bench and your leg position. Lat pulldowns need bench clearance and overhead access. Cable pull-throughs, reverse flys, and rotational drills often move your body farther from the frame than expected.
Plan your layout around the longest setup you intend to use, usually a flat or adjustable bench. A typical adjustable bench is roughly 4.5 to 5.5 feet long. Leave enough open floor to position it perpendicular and parallel to the machine, depending on the exercise. If you cannot rotate the bench without hitting a wall, your cable station is not getting its full job done.
Attachments need a home as well. Handles, ropes, ankle straps, bars, and collars should be stored on the machine or immediately beside it. Do not spend money on a commercial-grade frame, then leave the accessories in a loose bin across the room. A clean system supports a repeatable routine.
Do Not Ignore Access, Flooring, and Service Clearance
Before you commit to a footprint, measure the path from curbside delivery to the final room. Check exterior gates, hallways, stair turns, basement doors, and ceiling clearances. Large steel components can be carried in separately, but weight stacks, uprights, and packaged cartons still need a realistic route indoors.
Your floor needs to support the equipment and the way you train on it. A cable crossover is generally stable on concrete, but rubber flooring helps protect the surface, reduce vibration, and create a more finished training environment. For upper-floor rooms, consider the machine weight, stored plates, athlete weight, and any impact from lifting. When in doubt, verify the structure with a qualified professional.
Leave enough room behind or beside the unit for assembly, cable inspection, and future maintenance. A machine pressed flush against a wall may save a few inches, but it can make tightening hardware or checking pulley travel far harder than it needs to be. Commercial-grade equipment is built for long-term use. Give yourself the ability to maintain it properly.
Measure Your Room Before You Shop
Use painter’s tape to mark the exact machine footprint on the floor, then add the intended clearance around it. Stand inside that outline with a bench, a few dumbbells, and the space you would need for a split stance. Mimic a cable press, row, fly, and pulldown position.
This simple test exposes layout problems that a room measurement alone will miss. You may find that a door opens into the ideal training lane, a window blocks pulley access, or a low light fixture sits directly above the pull-up bar. Solve those problems before the equipment arrives.
Also decide whether the cable crossover is the anchor of a dedicated gym or one piece of a broader strength, cardio, and recovery setup. A dedicated room can prioritize open training space. A multipurpose room may need defined zones so a treadmill, cold plunge, or storage area does not steal the floor space your cable work requires.
The right setup should feel deliberate the first time you train in it. Give your cable crossover enough room to move, load, and perform, and your home gym stops being a spare room with equipment in it. It becomes infrastructure for the routine you refuse to compromise.
